Possession material

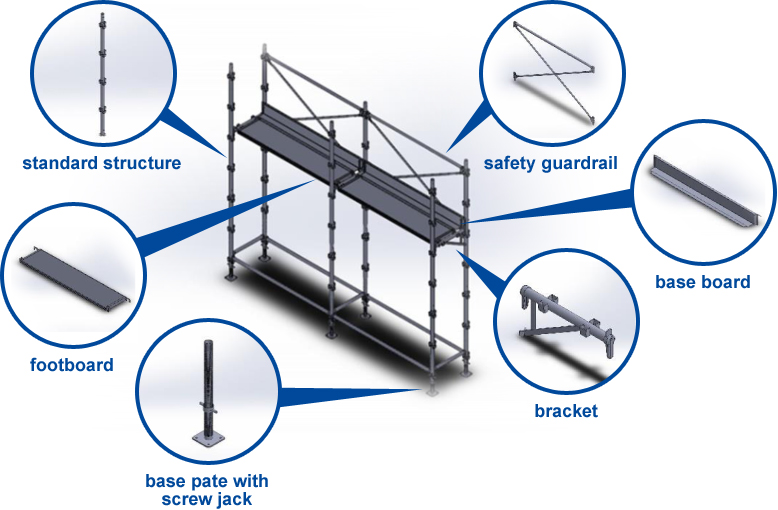

assembling drawing

    size(mm) Weight
standard structure BK-A φ48.6×3,800 14.0kg
BK-C φ48.6×1,900 7.1kg
BK-D φ48.6×950 3.8kg
    etc.
safety guardrail BX-18 φ34×1,800 6.9kg
BX-15 φ34×1,500 6.2kg
BX-12 φ34×1,200 5.3kg
    etc.
base board BL-1518N 150×1,800 4.3kg
BL-1515N 150×1,500 3.6kg
BL-1512N 150×1,200 3.0kg
    etc.
footboard F-4018 400×1,800 12.3kg
F-4015 400×1,500 11.0kg
F-4012 400×1,200 7.8kg
    etc.
bracket TB-60W φ42.7×600 2.8kg
TB-30 φ42.7×355 1.8kg
base pate with screw jack PJB-6 φ41.7×600 2.3kg
PJJ-6 φ41.7×600 2.6kg
